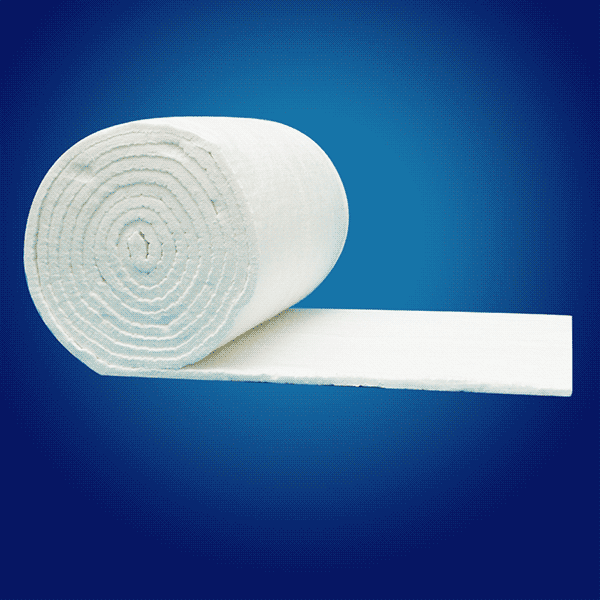

Ceramic Fiber Blanket
Density: 96/128/160 kg/m³(6/8/10 lb/ft³)
Raw materials: Spuned Ceramic Fiber Bulk
Thickness: 10-50mm
Asbestos: 100% Non Asbestos
Function: Refractory & Insulation & Fireproof & Acoustic
Share With :
Introduction
Technical Data
Application
Resource
Rosewool ceramic fiber blanket has excellent specialties of low thermal conductivity, good heat stability, thermal shock resistance and tensile strength, good thermal insulation, fire proof and noise reduction. It is widely used in power generation, iron and steel, aluminum/n-ferrous metals, glass, ceramics, aerospace, super alloys, petrochemical, semiconductors, cement, automotive, domestic appliances etc. Temperature level is 1100-1430℃ (2012℉--2600℉).

Low thermal conductivity, low heat storage
Good heat and chemical stability
Thermal shock resistance
Tensile strength
Good thermal insulation
Noise reduction
Fire proof
Type COM ST HP HA Zir-Alu HZ
Classified Temp. 1100℃
(2012℉)
1260℃
(2300℉)
1260℃
(2300℉)
1360℃
(2480℉)
1400℃
(2550℉)
1430℃
(2606℉)
Working Temp. <1000 ℃
(1832℉)
1050℃
(1922℉)
1100℃
(2012℉)
1200℃
(2192℉)
1200℃
(2192℉)
1350℃
(2462℉)
Color white white white white white white
Density(kg/m3) 96/128
(6/8 lb/ft3)
96/128
(6/8 lb/ft3)
96/128
(6/8 lb/ft3)
128/160
(8/10 lb/ft3)
128/160
(8/10 lb/ft3)
128/160
(8/10 lb/ft3)
Linear Shrinkage (%)
(24 hrs,density 128 kg/m³)
-4
(1000℃/ 2012℉)
-3
(1000℃/1832℉)
-3
(1100℃/2012℉)
-3
(1250℃/2282℉)
-3
(1200℃/2192℉)
-3
(1350℃/2462℉)
Thermal conductivity(W/M.K)
Density 128kg/m³( 8 lb/ft3)
0.09
(400℃/752℉)
0.16
(800℃/1472℉)
0.09(
400℃/752℉)
0.16
(800℃/1472℉)
0.09
(400℃/ 752℉)
0.16
(800℃/ 1472℉) 0.20
(1000℃/1832℉)
0.12
(600℃/ 1112℉)
0.20
(1000℃/1832℉)
0.132
(600℃/1112℉)
0.22
(1000℃/1832℉)
0.16
(600℃/ 1112℉)
0.20
(1000℃/1832℉)
Tensile Strength(Mpa)
(Density 128kg/m³)
0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12
Chemical(%) Al2O3 44 46 47-49 52-55 45-46 39-40
Al2O3+SiO2 96 97 99 99 - -
Al2O3+SiO2+ZrO2 - - - -   99
ZrO2 - - - - 5-7 15-17
Fe2O <1.2 <1.0 0.2 0.2 0.2 0.2
Na2O+K2O ≤0.5 ≤0.5 0.2 0.2 0.2 0.2
Size(mm) 7200/3600*610/1220/10-50mm or customized as your specification
             24′/12′ * 24"/48" * 0.4"/2"
1. Linings and back-up insulation for all types of furnaces, heaters and kilns

2. External insulation such as boiler, turbine, duct and piping, precision casting shell etc

3. Vehicles and domestic appliance insulation

4. High temperature sealing material such as ladle lid, duct connecting part etc

5. Noncombustible materials for building

6. High temperature gas filtration material, high temperature part sound absorbing material

7. Pressure and cryogenic vessel fire protection

8. Furnace repairs
