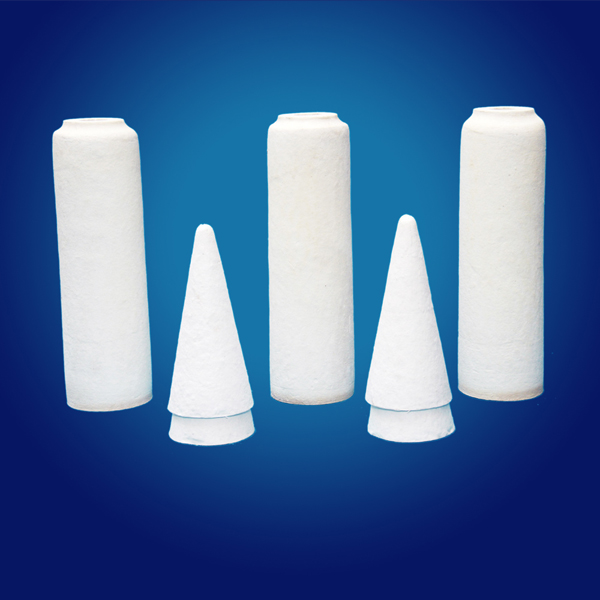

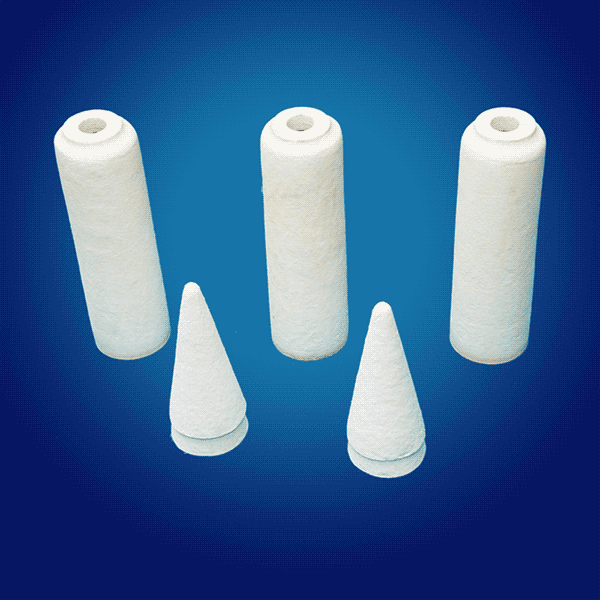

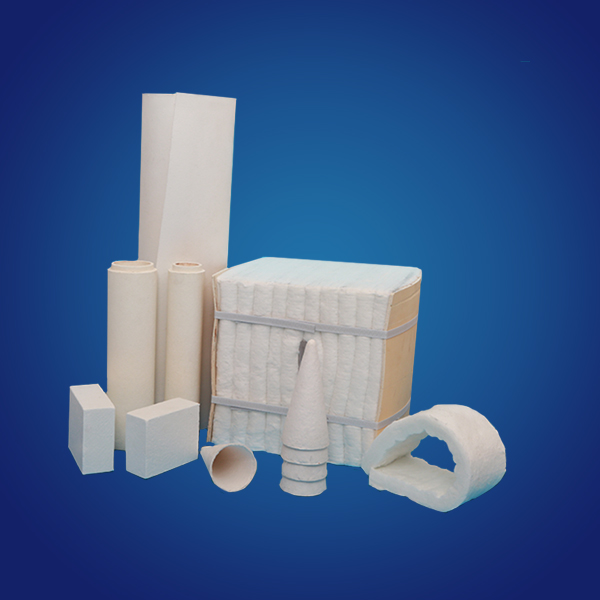

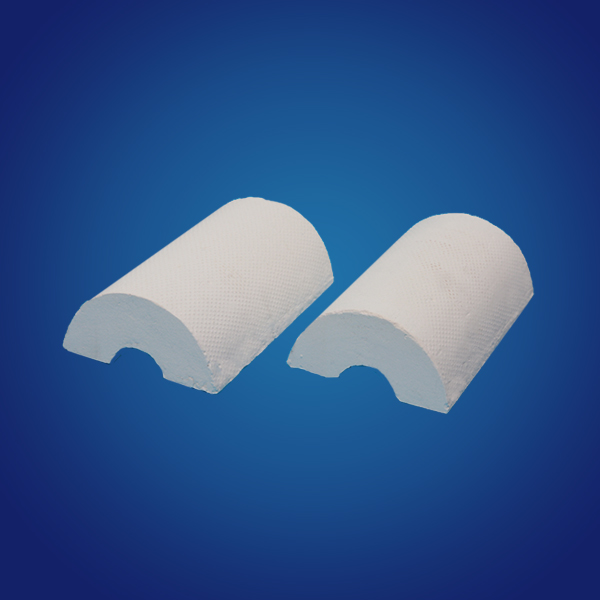

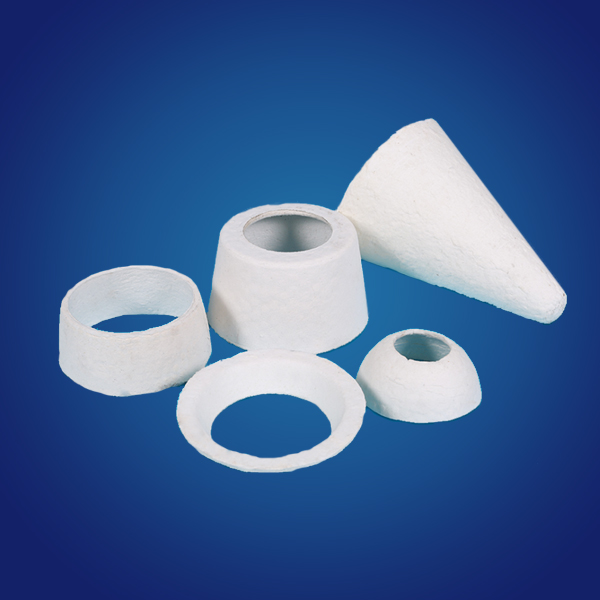

Ceramic Fiber Special Shaped
Raw materials: Spuned Ceramic Fiber Bulk
Asbestos: 100% Non Asbestos
Shape: Various kinds
Colour: White
Function: Fire-proof & Insulation
Share With :
Introduction
Technical Data
Application
Resource
    Vacuum form ceramic fiber gasket is made of high quality aluminum silicate insulation cotton, vacuum model progress. The purpose of the development of this product is to make high temperature performance and self-supporting shaped products. Ceramic fiber gasket is to make specific production for any requirement,each product according to its shape and size, it needs to make a special mold, according to the performance requirements of products, chose binders and additives for the requirements. All products have low shrinkage within its operating temperature ranges, and maintain a high insulation, light-weight and impact resistant characterizes.

Good thermal shock resistance
High strength/weight ratio
Low thermal conductivity
Non wetting

Item Special Shaped Ceramic fiber
Material Ceramic fiber
Specifications Manufactured based on drawing provided by costumer
Classification temperatures 1050℃/1922℉ Ordinary Ceramic Fiber special-shaped
1260℃/2300℉ Standard Ceramic Fiber special-shaped
1260℃/2300℉ High-purity Ceramic Fiber special-shaped
1400℃/2552℉ High-alumina Ceramic Fiber special-shaped
1450℃/2642℉ Zirconia Ceramic Fiber special-shaped
Working temperatures 950℃/1742℉ Ordinary Ceramic Fiber special-shaped
1050℃/1922℉ Standard Ceramic Fiber special-shaped
1100℃/2012℉ High-purity Ceramic Fiber special-shaped
1200℃/2192℉ High-alumina Ceramic Fiber special-shaped
1350℃/2462℉ Zirconia Ceramic Fiber special-shaped
Characteristics Low heat capacity
Low thermal conductivity
Excellent thermal stability
Excellent thermal shock resistance
Excellent anti-wind corrosion
Applications 1 .Industrial kilns observation hole, thermometer hole;
2. Industrial furnace burner brick;Industrial furnace door;
3. Sump and launder for aluminum products industry;
4. Heat insulation for thermal radiation in civil and industrial heating device.
Package Carton or Wooded Box
    Applications that require high-temperature toughness, high strength from the load-bearing areas

For high air flow, mechanical damaging large areas of Industrial furnace wall lining, door and roof seals

Construction, fire doors, fire wall fire insulation

High-temperature pipe wall lining

High-temperature furnace insulation

High temperature gasket

Glass tank furnace insulation panels

Furnace roof insulation

Molten metal delivery system

Combustion chamber insulation

Ladle furnace backing

Shipping, aviation, precision industrial equipment
