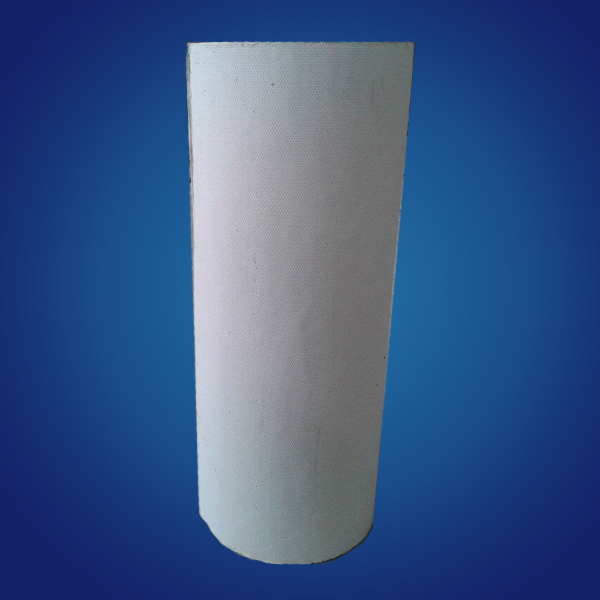

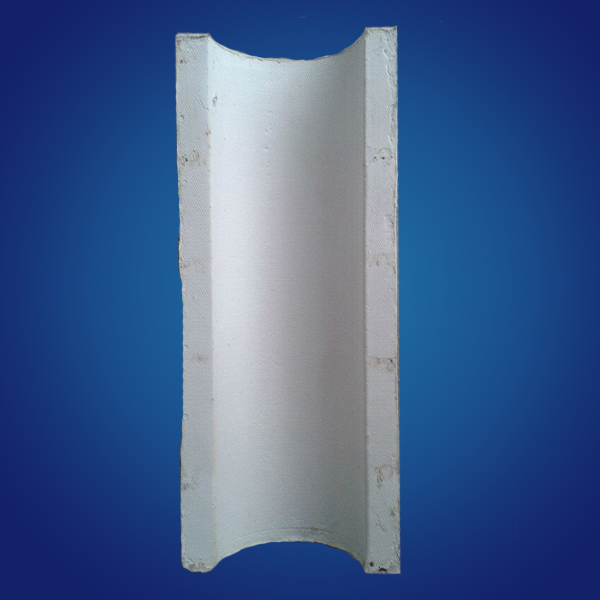

Calcium Silicate Pipe Insulation

Density: 170-500 kg/m³

Raw materials: Quartz sand

Thickness: 25-100 mm

Asbestos: 100% Non Asbestos

Function: Thermal insulation, Fire proof

$refractory Calcium Silicate,fireproof Board,Calcium Silicate Special Shapes$
$refractory Calcium Silicate,fireproof Board,Calcium Silicate Special Shapes$
$refractory Calcium Silicate,fireproof Board,Calcium Silicate Special Shapes$
$refractory Calcium Silicate,fireproof Board,Calcium Silicate Special Shapes$

Send E-mail Get Price

Share With :

Introduction

Technical Data

Application

PDF Download

Calcium Silicate Insulation Pipe is a white hard new insulation material, it has light weight, high strength, small heat, high temperature, corrosion resistance, can cut and others features. Widely used in power, metallurgy, petrochemical, cement manufacturing, construction, shipbuilding pipeline,wall roof insulation,fire insulation and other industries equipments.

High strength: in the condition of similar bulk density, it is the highest strength insulation material in inorganic hard insulation material

Heat resistance: no deformation in working temperature

Thermal insulation: lower thermal conductivity than other hard block insulation material

No asbestos: avoid various diseases caused by the asbestos fiber and other harmful substances

Item		Unit	Data
Density		Kg/m3	≤ 220±10%
Size	Board	mm	600300/900300/1000*500 thickness:25-115
	Pipe		diameter:20- 2200mm thickness:25-100mm
	Special size is made as customer's requirement.
Compressive Strength		Mpa	≥0.7
Flexural strength(min.)		Mpa	≥0.35
Linear shrinkage(max)		%	≤2.0
Thermal conductivity(max.)		w/m.k	≤0.065
Service temp.(max)		°C	650-1000
Product is according to ASTM C 533 standard.

Terms		Unit	Index
SiO2		%	44
CaO		%	43
MgO		%	1.3
Bulk Density		Kg/m³	220±10%
Thermal Conductive		W/m.k	≤0.052
Compressive Strength		MPa	≥0.50
Flexural Strength		MPa	≥0.30
Linear Shrinkage		%	≤2
Limit Temp		650°C
Ignition Loss		11.1%
Length(±3) mm	Thickness (±3) mm			ID(+2 -1.5mm)
600	≥30			20--2200
We can supply other sizes as per clients' requirement

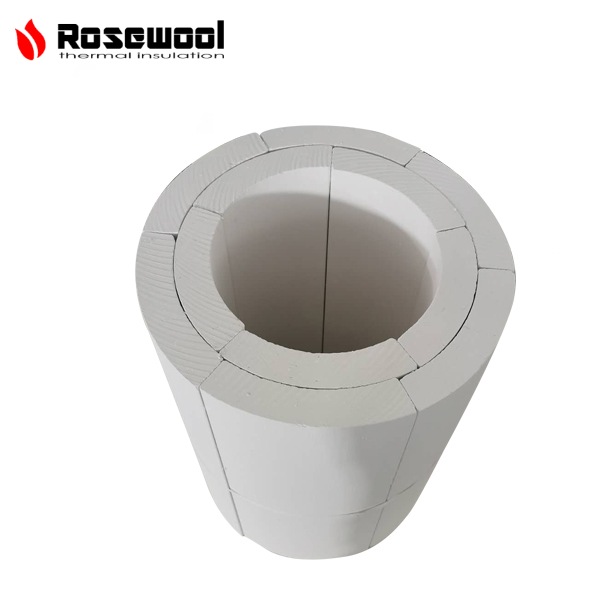

Calcium Silicate Insulation Pipe is made of calcium silicate powder by thermoplastic reaction, and then mixed with inorganic fibers to form a kind of insulation material.

It is a non-asbestos high-performance insulation material, used in power stations, petrochemical plants, oil refineries, heat distribution systems and treatment plants with heat pipe system , provide high-quality thermal insulation protection.
