Ceramic Fiber Tape

Density: 500±15 kg/m³

Raw materials: Ceramic Fiber Bulk

Thickness: 1.6-6.4mm

Asbestos: 100% Non Asbestos

Function: Insulation,Sealing and filling

Send E-mail Get Price

Share With :

Introduction

Technical Data

Application

PDF Download

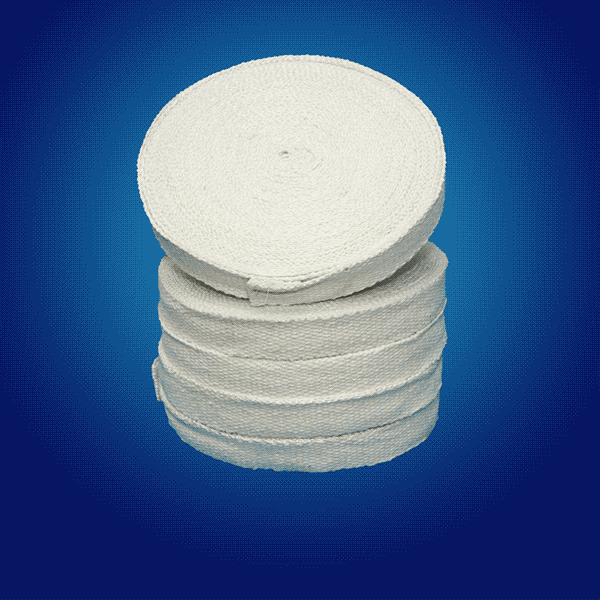

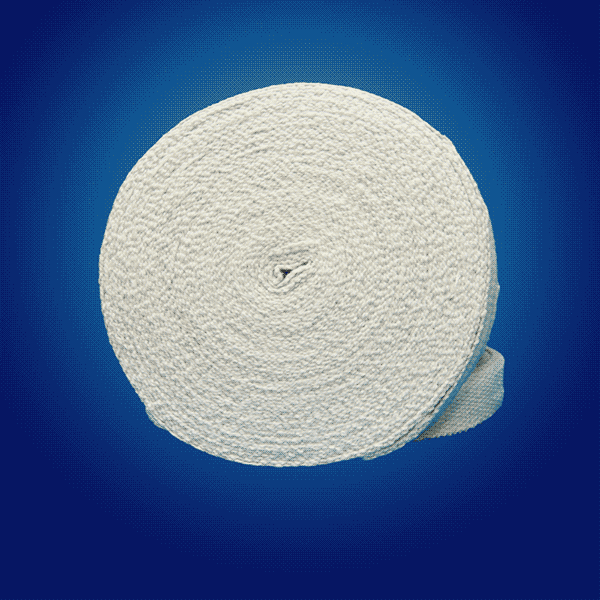

Ceramic fiber tape, also known as ceramic tape, aluminum silicate fiber tape, is a type of ceramic product with fiber characteristics, which can be used as fire-resistant, fire-resistant, thermal insulation and friction materials in various thermal equipment and heat conduction systems.

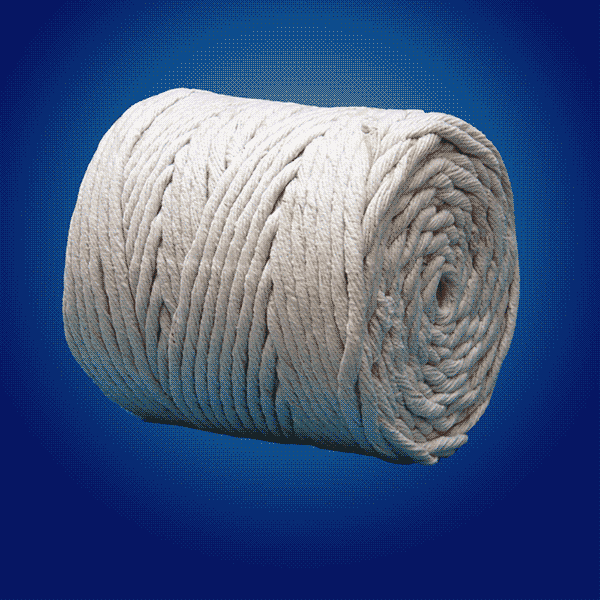

Ceramic fiber textile includes ceramic fiber cloth, strap, twisted rope, round braided rope and square braided rope. All are made from our high quality ceramic fiber material. They can be used for high temperature applications up to 2300°F. The rope is reinforced with fiberglass filament, and optional Inconel/alloy steel wire. Ceramic fiber textiles (cloth, tape and rope) contain a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property.

High temperature resistance, low thermal conductivity, thermal shock resistance, low heat capacity;

Excellent high temperature insulation performance, long service life;

It has the ability to resist the corrosion of non-ferrous metals such as molten aluminum and zinc;

Has good low temperature and high temperature strength;

Non-toxic, harmless, no adverse effects on the environment;

Easy construction and installation;

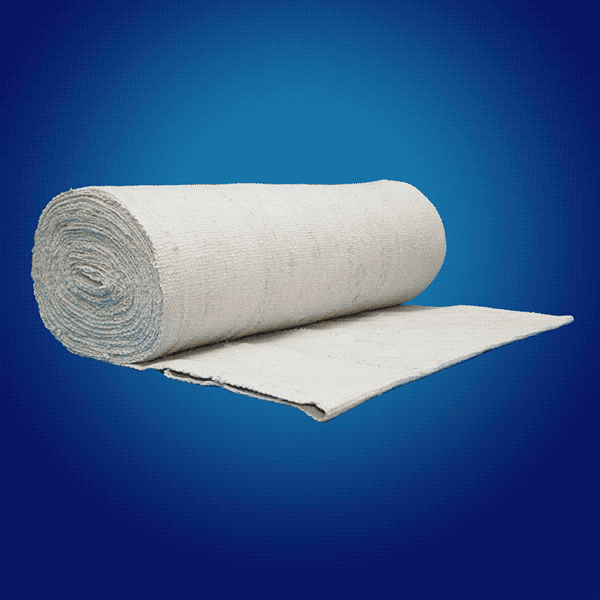

Ceramic Fiber Cloth:

Temperature(°C)	1260
Product Name	Glass Fiber Tape	Stainless-steel Reinforced Ceramic Fiber Tape
Basic Material	Ceramic Fiber/Glass fiber Reinforcement	Ceramic Fiber/Staineless-steel Reinforcement
Density(kg/m3)	500
Long-term Operation Temp(°C)	650	1050
Water Content(%)	≤2
Organic Content(%)	≤15
Heat Conductivity(W/m° K)	500℃: 0.101
	650℃: 0.105
	1000℃: 0.176
Packing	Woven Bag
Thickness	1.6-6.4mm
Width	20-100mm
Length	30m
Diameter of Fiber	3-5um

Thermal insulation of various kilns, high temperature pipelines and containers;

Furnace door, valve, flange seal, fire door and fire shutter material, high temperature furnace door sensitive curtain;

Engine and instrument heat insulation, fireproof cable covering material, high temperature fireproof material;

Cloth for thermal insulation, high temperature expansion joint filler, flue lining;

High temperature resistant labor insurance products, fireproof clothing, high temperature filtration, sound absorption and other applications that replace asbestos.
