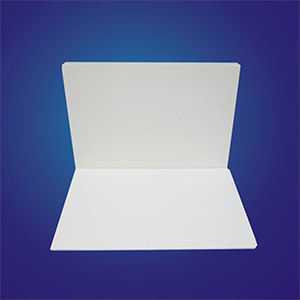

Ceramic Fiber Board Alternative

Raw materials: Rare Earth Cotton

Size: 1000*500*50; 300*600*50; 300*600*60mm

Working Temp.: 600℃(1112℉)

Softness: Soft

Function: Refractory & Insulation & Shockproof& Acoustic

Send E-mail Get Price

Share With :

Introduction

Technical Data

Application

PDF Download

Composite silicate thermal insulation material(Rock wool alternative, ceramic fiber alternative) is a closed microporous network structure combined with a solid matrix. The electrostatic inorganic thermal insulation material contains magnesium, aluminum, silicate non-metallic minerals-sepiolite as the base material, and a certain amount of auxiliary materials are combined. The raw materials and fillers are added with quantitative chemical additives; they are made by new technology and new technology.

Compared with other thermal insulation materials, they are light in weight, convenient in construction, can be cut arbitrarily, and are packaged according to the shape, without polluting the environment, no loss and so on.

There is no defect that the fibrous thermal insulation material is gradually powdered during the use process.

There is no shortcoming that the fibrous thermal insulation material gradually sags on the pipeline, causing the thermal insulation effect to decrease.

Good waterproof performance, not afraid of water immersion, rain, damage to the waterproof layer and steam leakage.

Low thermal conductivity (0.0384w/m.k), high temperature resistance and good thermal stability.

Good flame retardancy, the product is composed of natural inorganic materials.

It is non-toxic and tasteless, does not corrode equipment, and does not pollute the environment.

Profiles (tiles, slabs) have high strength, convenient construction, strong thermal insulation and beautiful appearance.

The paste has strong adhesion and convenient construction, especially suitable for on-site thermal insulation of complex shapes (such as valves, elbows, etc).

Product Category	Composite Silicate Insulation Material
Shape	Board
Size(mm)	100050050;30060050,30060060
Core Material	Rare Earth Cotton
Working Temp.	600℃(1112℉)
Compression Strength (Mpa)	0.3
Flexural strength(Mpa)	0.3
Thermal conductivity(W/M.K)	0.0384
Slide Way	Seal
low temperature bending	0.1
Color	Grey
Softness	Soft
Elongation at break	2

Composite silicate series products have been widely used in cold and heat insulation in petrochemical, electric power, chemical construction, heating, heating, air conditioning, refrigeration and other industries, and are currently the ideal insulation materials in China.

1. Power industry, power boilers, steam turbines and nuclear power insulation

2. Fire and heat insulation in the shipbuilding industry

3. Construction industry, fire insulation of fire doors

4. Wall lining of high temperature reaction equipment and heating equipment in chemical industry

5. Fire and thermal insulation for automobile and train manufacturing

6. Furnace lining, furnace door, top cover
