Ceramic Fiber Rope

Density: 500±15 kg/m³

Raw materials: Ceramic Fiber Bulk

Thickness: According to Different Needs

Asbestos: 100% Non Asbestos

Function: Insulation,Sealing and filling

Send E-mail Get Price

Share With :

Introduction

Technical Data

Application

PDF Download

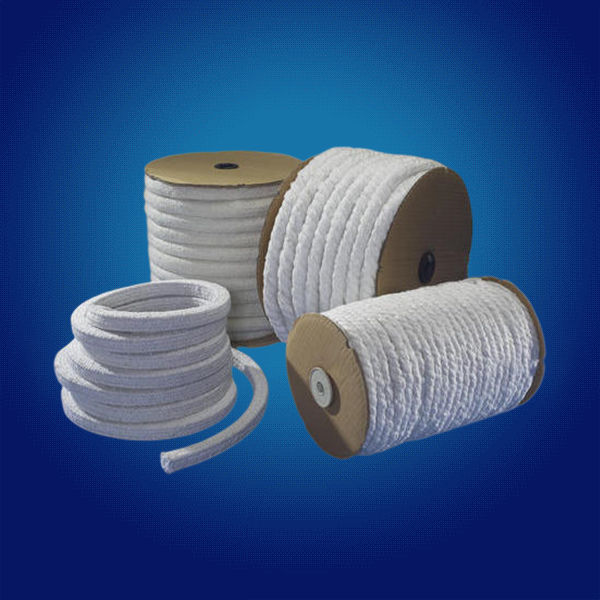

Ceramic fiber textile includes ceramic fiber cloth, strap, twisted rope, round braided rope and square braided rope. All are made from our high quality ceramic fiber material. They can be used for high temperature applications up to 2300°F. The rope is reinforced with fiberglass filament, and optional Inconel/alloy steel wire. Ceramic fiber textiles (cloth, tape and rope) contain a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property.

ROSEWOOL ceramic fiber rope is a woven fabric made from high quality ceramic fiber woven yarn .Ceramic Fiber Rope can can add glass fiber and stainless steel wire reinforcement according to different work temperature and work conditions.

Good compression strength

Non-toxicity, environmental protection

Low thermal conductivity and low thermal capacity

Good antacid oil resistance and water vapor resistance

Ceramic Fiber Rope:

Classification temperature	1260°C

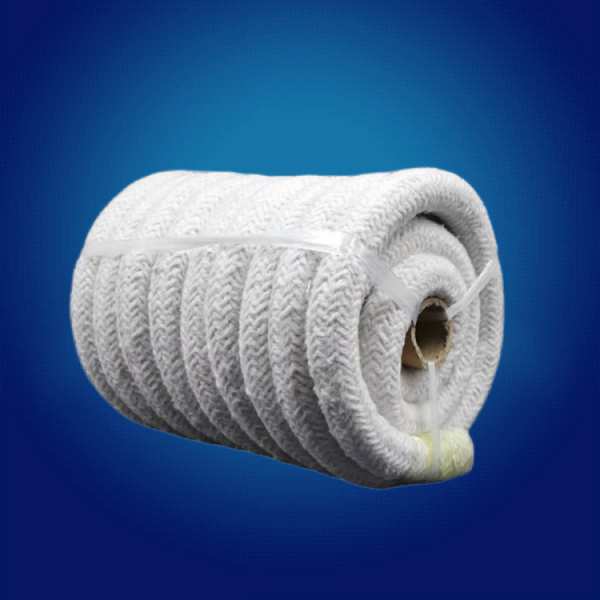

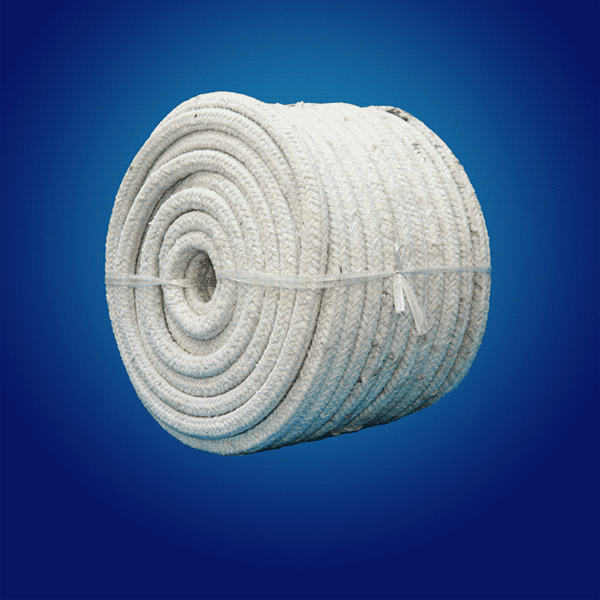

Product	round braided rope		square braided rope
Basic material	Ceramic fiber	Ceramic fiber	Ceramic fiber	Ceramic fiber
	Fiberglass reinforced	stainless steel reinforced	fiberglass reinforced	stainless steel reinforced
Theoretical density(kg/m3)	500~650	500~650	500~650	500~650
Specification(mm)	50000/10000*25/50		10000(5050)
Moisture content(%)	≤2
Delivery state	In Roll
Organic content(%)	≤15

Ceramic Fiber Cloth:

Temperature(°C)	1260
Product Name	Glass fiber Reinforced Ceramic Fiber Cloth with wire	Stainless-steel Reinforced Ceramic Fiber Cloth with wire
Basic Material	Ceramic Fiber/Glass fiber Reinforcement	Ceramic Fiber/Staineless-steel Reinforcement
Density(kg/m3)	500
Long-term Operation Temp(°C)	650	1050
Water Content(%)	≤2
Organic Content(%)	≤15
Heat Conductivity(W/m° K)	500℃: 0.101
	650℃: 0.105
	1000℃: 0.176
Packing	Woven Bag
Thickness	1.5-6mm
Width	1m
Length	10-30m
Diameter of Fiber	3-5um

Common applications: door seals or caulking for ovens, furnaces and boilers, expansion joints, cable or pipe wrapping, high temperature seals or gaskets. widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, exhaust systems, shipyards, refineries, power plants and chemical plants.
