  • rock wool,insulation rock wool,rock wool Pipe
  • rock wool,insulation rock wool,rock Wool Pipe
  • rock wool,insulation rock wool,rock wool Pipe
  • rock wool,insulation rock wool,rock Wool Pipe

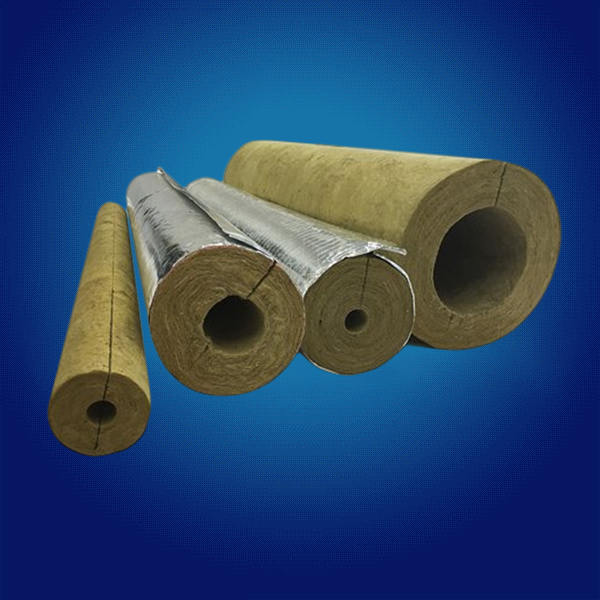

rock-wool-pipe
Density: 60-150 kg/m³
Raw materials: Basalt
Thickness: 25-200mm
Asbestos: 100% Non Asbestos
Function: Thermal insulation, Sound absorption
  • rock wool,insulation rock wool,rock wool Pipe
  • rock wool,insulation rock wool,rock Wool Pipe
  • rock wool,insulation rock wool,rock wool Pipe
  • rock wool,insulation rock wool,rock Wool Pipe
Send E-mail Get Price
Share With :
Introduction
Technical Data
Application
PDF Download
rock wool Pipe uses high-quality basalt as raw material whose melting point is above 1000 ºC and has good effects on heat insulation and sound absorption. It has good properties of fire resistance, pest proof, corrosion resistance, stable chemical property and free-asbestos and safe to human bodies.

Small coefficient of heat conductivity and good capability of heating preservation.
Outstanding effect of energy-saving.
Excellent fireproof capability. Excellent sound absorption and sound insulation capability.
Green thermal insulation materials and no harm for body.
Waterproof.
The folded rock wool board with certain compression resistance has greater drawing strength, and it does not tend to peel off and has excellent improved durability.
Performance Indicators
Shot content ( Particle diameter ≥0.25mm)

≤ 12.0 %
The average diameter of fiber

≤7.0 μm
Density Tolerance

± 15%
Thermal Conductivity ( average temperature 70℃±52℃),W/(m/K)

≤ 0.044
Thermal load contraction temperature (more than 60 kg/m³)

≤ 600 ℃
Moisture

≤0.5%
Combustion performance
Not burning (Class A)
Organic content

≤ 4.0%

Nominal Diameter

ID

Thickness, mm





mm



(“)

mm



25

30

40

50

60



70

80



90

100

120

150





15



1/2

22



 ●

●

●

●























20



3/4

27



●

●

●

●

●



●

●















25



1

34



●

●

●

●

●



●

●















32



1-1/4

43



●

●

●

●

●



●

●



●

●









40



1-1/2

48



●

●

●

●

●



●

●



●

●









50



2

60



●

●

●

●

●

●

●

●

●









65



2-1/2

76



●

●

●

●

●



●

●



●

●









80



3

89



●

●

●

●

●

●

●

●

●









90



3-1/2

108



●

●

●

●

●



●

●



●

●









100



4

114



●

●

●

●

●



●

●



●

●

●







125



5

140





●

●

●

●



●

●



●

●

●

●





150



6

169



●

●

●

●



●

●



●

●

●

●





200



8

219







●

●

●



●

●



●

●

●

●





250



10

273







●

●

●



●

●



●

●

●

●





300



12

325







●

●

●



●

●



●

●

●

●





350



14

356









●

●



●

●



●

●

●

●





375



15

381









●

●



●

●



●

●

●

●





400



16

406









●

●



●

●



●

●

●

●





450



18

456









●

●



●

●



●

●

●

●





475



19

483















●

●



●

●

●

●





500



20

508















●

●



●

●

●

●





550



22

558

















●



●

●

●

●





600



24

610

















●



●

●

●

●

rock wool insulation materials are widely used in industrial furnace, oven, heat-treating equipment, storage tank, storage groove,  flue, petrifaction and oil refining equipment and all kinds of keeping-warm and heat insulation pipelines.
rock-wool.pdf
文件类型: .pdf rock-wool.pdf
rock wool Catalogue
Download
