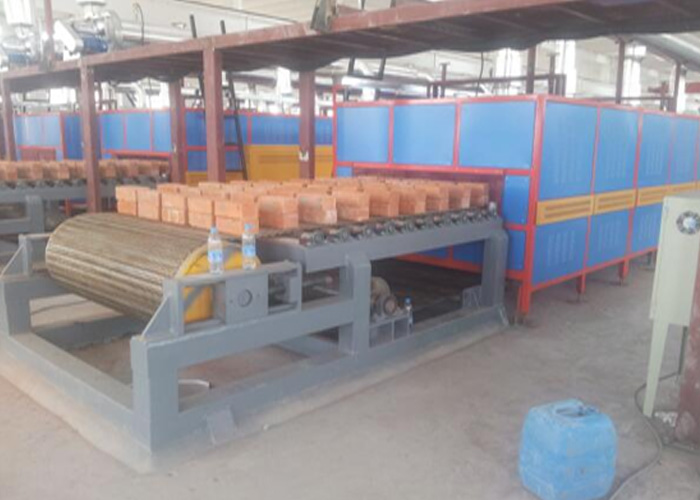

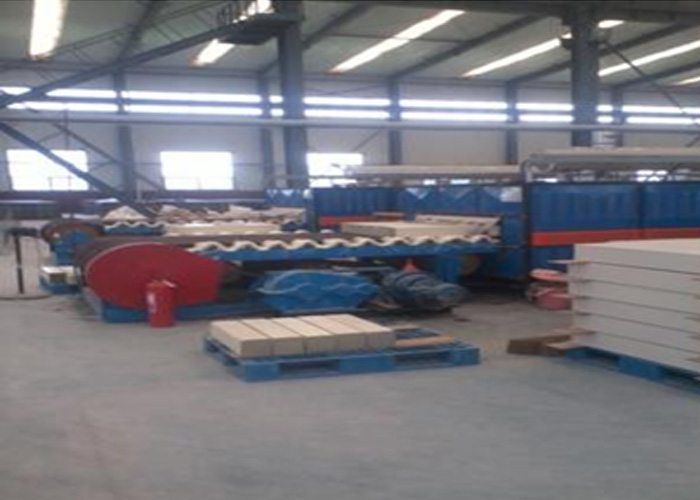

High temperature mesh belt heat treatment furnace is generally protected by the muffle net parts to achieve continuous transmission of the furnace sintering furnace. Mainly used for powder metallurgy products sintering and reduction of metal powder and electronic products in the protection of the atmosphere or air in the burning, firing or heat treatment process, suitable for small parts of the heat treatment.

    The highest furnace temperature: 1150 degrees (metallurgy), 750 degrees (catalytic)

    The whole set of equipment consists of three parts of furnace body, net belt drive system and temperature control system. The furnace body consists of feed section, preheating section, sintering section, slow cooling section, water cooling section and discharge section. Mesh belt drive system with high temperature mesh belt, transmission and other components.

    The high temperature net belt heat treatment furnace is made of welded steel and steel plate. The furnace shell is made of lightweight foam refractory brick and aluminum silicate refractory fiber into the through-type furnace to reduce the heat storage capacity of the lining.

    Examples of flue gas denitrification honeycomb ceramic catalyst for the production of mesh belt insulation structure Furnace length: 22m-58m; furnace width: 0.93-1.5m
Firing temperature: 480-620 degrees; maximum temperature: 750 degrees
Mesh belt insulation material selection: standard ceramic fiber module and standard ceramic fiber blanket composite insulation
Furnace wall: 270mm rosewool ceramic fiber module and 30mm rosewool carpet blanket
Furnace roof: 300mm rosewool ceramic fiber module and 50mm rosewool carpet blanket

    Mesh belt heat treatment furnace insulation and roof insulation is easy with off the appropriate insulation thickness; keep the furnace wall and the top in the same heat, with the same outer temperature.
    The mesh belt furnace adopts the whole fiber lining to reduce the heat storage and thermal inertia of the furnace wall, shorten the heating time, improve the control precision, reduce the surface temperature rise of the furnace shell, reduce the heat loss, improve the thermal efficiency and achieve the purpose of energy saving.
    Mesh kiln insulation furnace use fiber structure, fire-resistant fiber masonry, good insulation performance, try to reduce the temperature of the steel structure to reduce the deformation.
