Straight-line tunnel kiln and paratactic type tunnel kiln ceramic fiber solution to high temperature insulation
Tunnel kiln flat ceiling including linear flat ceiling and paratactic type kiln condole top, both of which are based on ceramic fiber flat condole carries on the way to the tunnel kiln for thermal insulation roof construction, made of lightweight refractory fiber lining tunnel kiln.
Linear kiln drying and calcination section in a line;
Tied for kiln drying and calcination section with separate, a baked a burn, a burning, baking two two drying and burning, etc.
Ceramic fiber insulation structure of tunnel kiln top:

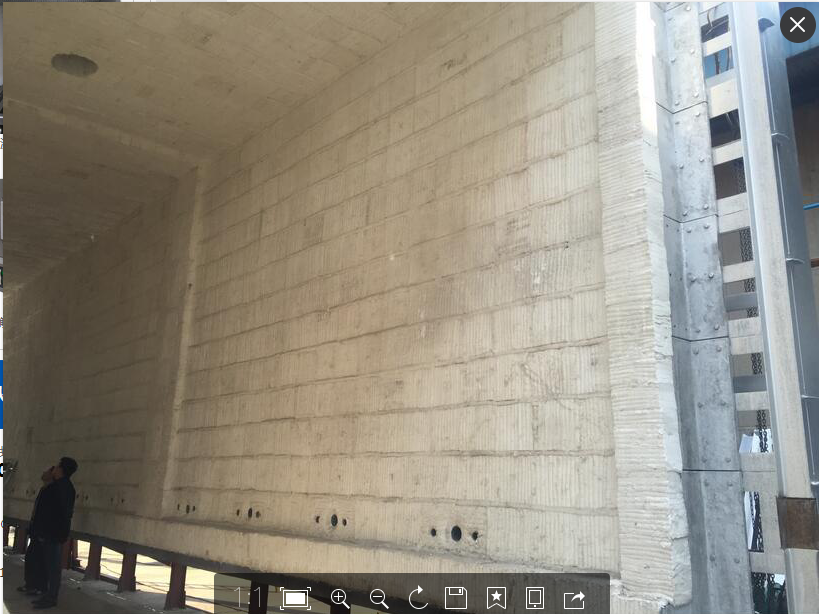

Straight kiln and parallel kiln are refractory bricks and red brick masonry walls, the top of the kiln with full fiber flat ceiling insulation lining tunnel kiln flat ceiling high temperature zone ceramic fiber insulation :

Temperature range: 950 - 1150 insulation thickness:

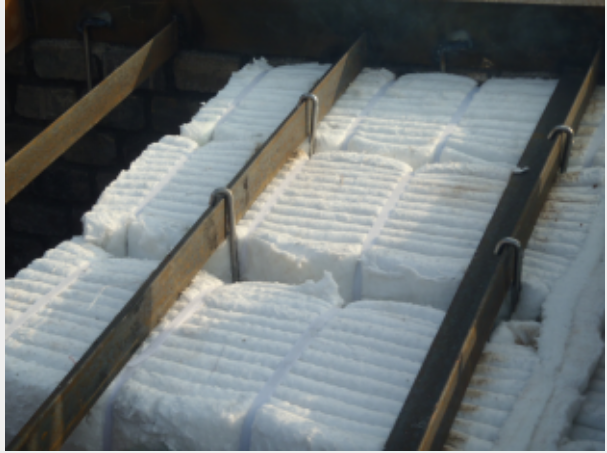

300mm folding block (compensation blanket reinforced seal) + two layers of 30mm thick blanket folded to 50mm thick to do flat blanket + 3mm surface curing agent;
Material selection: high-alumina ceramic fiber folding block + standard ceramic fiber blanket
Anchor: S304 firmware tunnel kiln flat ceiling low temperature
Ceramic fiber insulation: (preheat and cooling zone)
Temperature range: 300-950 Insulation thickness: 250mm ceramic fiber folding block (compensation blanket reinforced seal) +30 / 50mm flatbed + 3mm surface curing agent;
Material selection: standard ceramic fiber folding block + ceramic
Fiber blanket anchor: S304
Our Features：

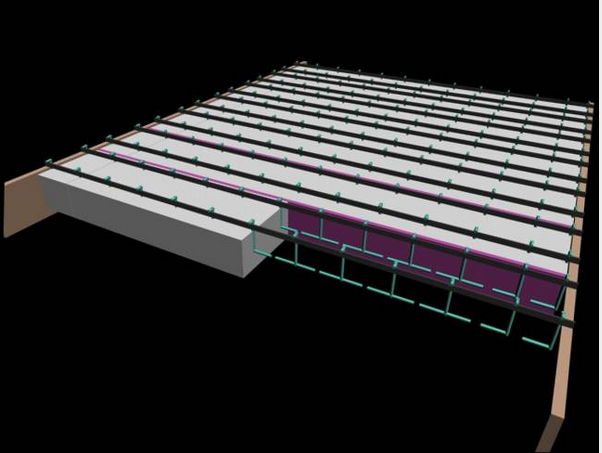

We use the hanging structure, the tunnel kiln roof more integrity, better insulation and insulation effect.;
T + L hanging, the perfect combination of human interference factors less;
Multi-anchor, more secure and reliable installation, high efficiency, and shorten the kiln cycle
Jack squeeze, enhance the firmness of nearly 50 times
